Terra Soil Sensor Node (Single Unit)

€349.00 / kit

This pack contains two node sensors only. A Master sensor is needed in addition to these Node sensors. Consider our Starter Kit if this is your first installation.


This order includes:

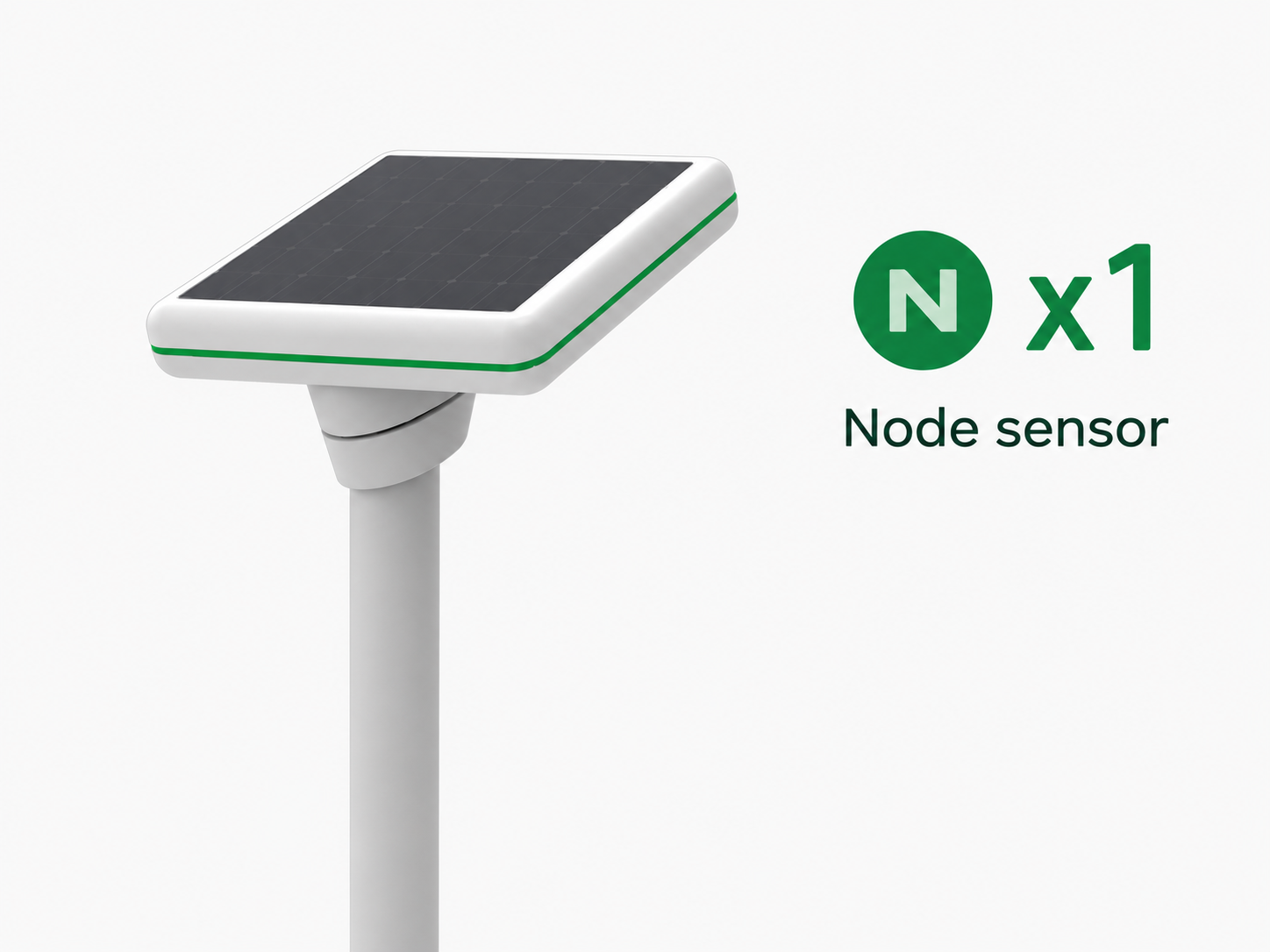

  • 1 Node Sensor
GPS
Length

SKU: PCSK2030-NGPS-L30

Shipping & Taxes will be calculated at the last step.

EU businesses can put their EU VAT number for reverse charge.

  Your items are in-stock can be paid directly at checkout.
Your price

€349.00 / kit
1 kit ·  €349.00 total

View cart

TERRA SENSORS

All-in-one soil and ambient sensor.
Comes in different lengths (30/60/90) and types (Master/Node)



Los sensores forman una red entre sí. Un sensor Maestro actúa como puerta de enlace, recopila las lecturas de todos los sensores y las envía a Internet mediante conectividad celular. Estos son los 2 tipos de sensores:


El sensor maestro actúa como la puerta de enlace de tu finca. Usa una tarjeta SIM para conectarse a Internet. Una instalación típica requiere solo un maestro.
El sensor nodo tiene una funcionalidad similar al Maestro, pero en lugar de enviar datos directamente a Internet, solo puede usarse junto con un Maestro, que actúa como su puerta de enlace.

Grupos de sensores

Un grupo de sensores Nodo usa un Maestro para enviar datos fuera de la finca/invernadero. Se pueden desplegar muchos grupos de este tipo, enviando datos como una sola finca. Se pueden añadir muchas fincas a cada cuenta. El alcance entre sensores es de 500 m/1640 pies.



Different lengths are also available

The capacitance plate orientation is shown below for the longer probes

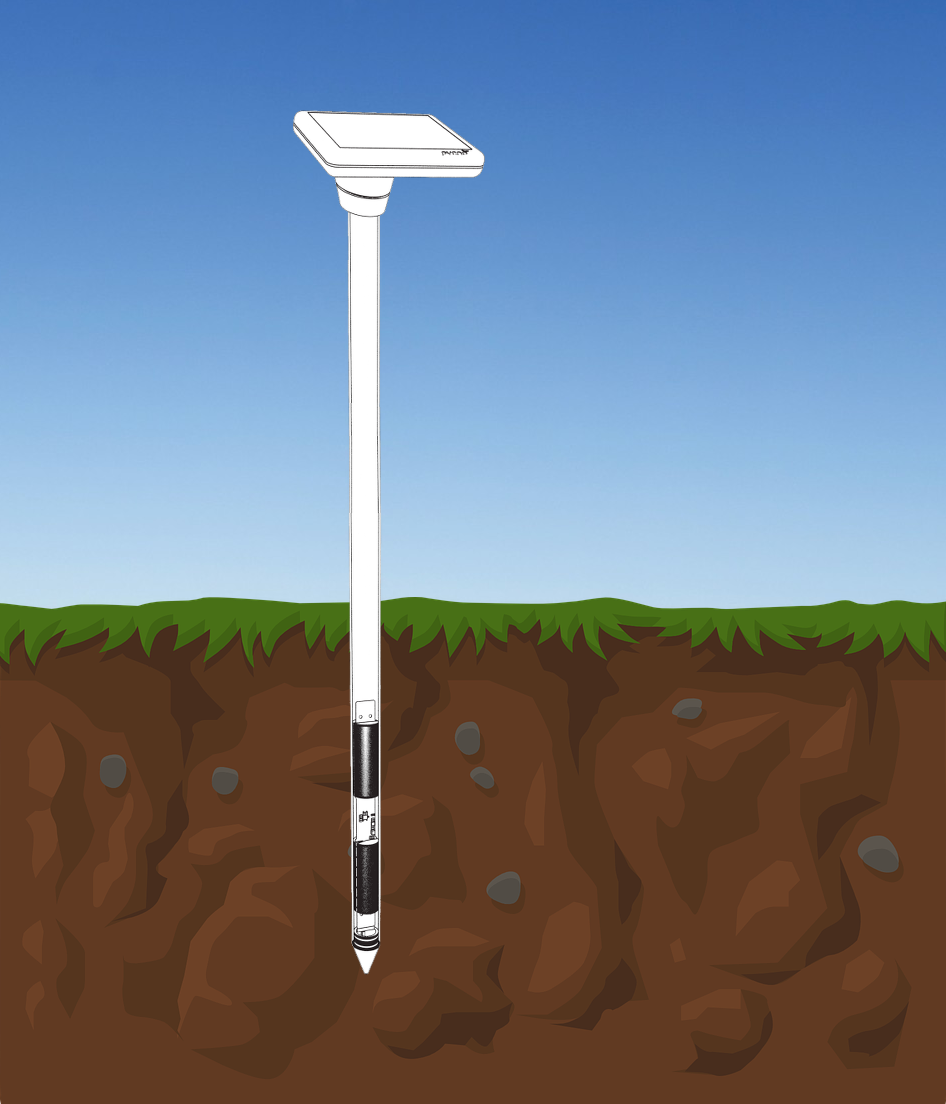

Location of features and controls


For illustration purposes only.Length and soil module count varies.

Sensor measures

Air Temperature & Humidity – Accurate readings are used in disease & evapotranspiration models

Solar Radiation – Record the amount of sunlight your plants are getting

Soil Temperature – Useful for root health & sensitive plants like flower bulbs

Soil Moisture every 15cm – Modules can be chained up to 0.9 meters

Internal microphone – Detect rain in order to classify irrigation events



Key specs

High efficiency monocrystalline 2W Solar Panel

Internal battery providing months of power even without sunlight

Solar irradiance (IR + visible light) – Range: 300~1100nm – Accuracy: 16bit

Air Temperature – Range: -40~125°C – Accuracy: +/-0.3°C

Air Humidity – Range: 0~100%RH – Accuracy: +/- 2%

Soil Temperature – Range: -10~85°C – Accuracy: +/-0.4°C

Capacitive Soil Moisture – Resolution: 28bit, VWC Accuracy 2% depending on soil
